How to Use a Jump Starter With an Air Compressor Safely

A jump starter with an air compressor is really two tools sharing one rechargeable battery.

To start a vehicle, you connect the smart clamps to the vehicle’s approved 12V jump points and follow the jump starter and vehicle manuals. To inflate a tire, you connect the air hose, set the vehicle manufacturer’s recommended pressure, and run the compressor while monitoring the tire and hose.

Do not treat those jobs as one continuous procedure. A dead battery and a low tire have different causes, risks, and stopping points.

Before using either function, move to a safe location, switch the vehicle off, set the parking brake, inspect the equipment, and read the instructions supplied with your vehicle and jump starter.

Know the Tool Before an Emergency

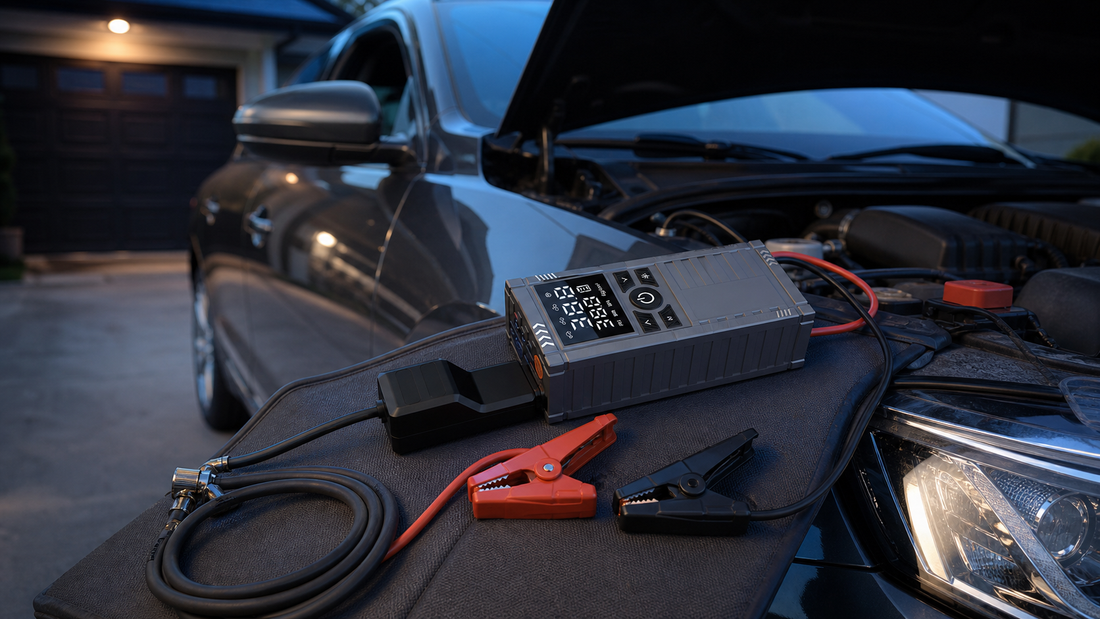

The KingTool 4500A Jump Starter with 150 PSI Air Compressor is designed for supported 12V cars, SUVs, trucks, motorcycles, and similar applications.

Its product page lists a smart-clamp connection, pressure presets, an LCD display, automatic shutoff, USB power-bank functions, and an emergency light.

Those specifications do not replace the manuals. Battery location, designated jump points, grounding instructions, and electronic-system warnings vary by vehicle.

Some hybrid and electric vehicles have a separate 12V system with model-specific procedures. The high-voltage traction battery is not a DIY jump-start point.

Before storing the unit, identify the clamp connector, air outlet, pressure controls, charging port, and included adapters in daylight. A roadside shoulder is the wrong place to learn the interface.

If you are new to basic tools, start with the Beginner Tool Guide, then review the 10 Essential Hand Tools Every Homeowner Should Have.

A jump pack does not replace a tire-pressure gauge, flashlight, gloves, or the hand tools needed for simple checks.

Safety Checks Before Connecting Anything

Park away from moving traffic whenever possible. Turn on the hazard lights, set the parking brake, switch off accessories, and keep passengers away from the work area.

Inspect the jump starter, clamps, cable insulation, air hose, and connectors.

Do not use equipment that is swollen, cracked, leaking, unusually hot, wet inside, or visibly damaged. Keep flames, sparks, cigarettes, and loose metal tools away from the battery area.

Do not attempt a jump if the vehicle battery is cracked, leaking, bulging, possibly frozen, or producing a strong rotten-egg odor.

Confirm polarity using the positive and negative markings rather than judging by cable color alone.

Finally, confirm that the jump starter has enough charge for the task. A unit that has been forgotten in the trunk for months may light its display but still lack the energy needed for a successful start.

How to Jump-Start a Car With a Portable Jump Starter

The following is a general sequence. If any step differs from your vehicle manual or jump starter manual, follow the manuals.

1. Turn the Vehicle Completely Off

Remove the key or place the starting system in its fully off state.

Switch off the lights, climate control, audio system, seat heaters, phone chargers, and other accessories. Set the parking brake and open the hood or approved battery-access area.

2. Find the Approved Connection Points

Many vehicles expose the battery terminals under the hood. Others use designated remote jump posts.

The negative connection may be a marked chassis ground instead of the battery’s negative terminal. Your owner’s manual should identify the correct locations.

Never connect to an unmarked component simply because it is metal. Avoid moving belts, fans, hot exhaust parts, fuel lines, and delicate electronic hardware.

3. Connect the Smart-Clamp Cable to the Jump Starter

Keep the clamps separated.

Insert the clamp assembly into the jump starter only as directed by the product manual. Make sure the connection is fully seated before attaching the clamps to the vehicle.

Do not allow the positive and negative clamps to touch.

4. Attach Positive, Then Negative or the Designated Ground

Connect the red clamp to the approved positive point marked with a plus sign.

Connect the black clamp to the approved negative terminal or grounding point specified by the vehicle manufacturer. The jaws need clean, firm metal contact.

Check the smart-clamp indicator. If it reports reversed polarity, a poor connection, or another fault, do not casually override it.

Switch off or disconnect the unit according to its instructions, correct the cause, and reassess the connection.

AAA’s overview of how to jump a car battery safely explains why connection order and keeping sparks away from the battery area matter.

A portable pack replaces the donor vehicle, but it does not remove the need for correct polarity and secure connections.

5. Enable the Starting Function

Activate the jump starter only as its manual directs. Stand clear of moving engine parts and try to start the vehicle.

Do not hold the starter continuously or make repeated attempts without the rest period specified by the product or vehicle manufacturer.

If the engine does not start, stop. Recheck the battery connections and the jump pack’s status.

Repeatedly forcing the starter can overheat equipment and may not help if the real fault involves the starter motor, a damaged battery, security system, fuel supply, ignition system, or another electrical component.

6. Disconnect Promptly in the Specified Order

Once the engine is running steadily, turn off the jump function if required and remove the clamps in the order stated by the manuals—commonly the black connection first and the red connection second.

Keep the clamps from touching each other or other metal surfaces while either remains connected.

A successful start does not prove the battery is healthy. A weak battery, charging-system fault, loose connection, or parasitic drain can leave you stranded again.

Arrange a battery and charging-system test instead of assuming that driving the vehicle has permanently fixed the problem.

How to Use the Built-In Air Compressor

1. Inspect the Tire First

Do not inflate a tire with exposed cords, a torn sidewall, a large puncture, severe cracking, or a bead that has separated from the wheel.

Do not crawl beneath a vehicle supported only by a jack.

If the tire is structurally damaged, use the approved spare tire or call roadside assistance. Adding air does not repair physical damage.

2. Find the Correct Target Pressure

Use the vehicle’s tire-information placard—usually located on the driver-side doorjamb—or the owner’s manual.

Do not automatically use the maximum number molded into the tire sidewall.

The National Highway Traffic Safety Administration’s tire-safety guidance recommends checking tires when they are cold and using the vehicle manufacturer’s recommended cold inflation pressure.

If the tire is warm from driving, treat the reading as temporary and recheck it when the tire is cold.

3. Connect the Hose Securely

Remove the valve cap and attach the hose fitting squarely to the valve stem.

A crooked or loose fitting leaks air and produces a misleading pressure reading.

Place the compressor on a stable surface where the air hose can reach the valve without being stretched across a sharp edge, hot component, or moving part.

4. Select the Pressure Unit and Preset

Wake the unit and select PSI, bar, or kPa to match the information provided by the vehicle manufacturer.

Choose the correct mode if the device provides presets. Enter the target pressure rather than the tire sidewall maximum.

Double-check both the pressure unit and the number before pressing start. Confusing bar, kPa, and PSI can produce a seriously incorrect setting.

5. Inflate While Observing the Tire

Start the compressor and remain nearby.

The KingTool unit lists a real-time pressure display and automatic shutoff, but you should still watch for unusual vibration, a rapidly heating hose, a falling pressure reading, or a tire that changes shape abnormally.

Compressors and fittings can become hot. Do not grab the metal connector immediately after a long inflation cycle.

Follow the product’s duty-cycle and cooling instructions, especially when working with a larger tire or adding a substantial amount of air.

6. Verify the Pressure and Replace the Valve Cap

After the compressor stops, verify the pressure with a separate gauge if one is available.

Disconnect the hose carefully, replace the valve cap, and listen for an air leak. Recheck the tire later, particularly if its pressure was significantly low.

Inflation restores pressure. It does not seal a nail hole, damaged valve, cracked wheel, or sidewall puncture.

For a fuller comparison of inflation options, read Best Portable Tire Inflator for Cars: Cordless, 12V, or All-in-One?.

Drivers who do not need a battery-boosting function can also compare the dedicated KingTool 20,000mAh Portable Air Pump.

Choose between a dedicated inflator and a combination unit based on the emergencies you are preparing for, not the largest specification printed on the product page.

Charging, Storage, and Monthly Checks

Recharge the jump starter after use and according to the supplied maintenance schedule.

Store it securely in its case so the clamps cannot contact metal objects. Do not leave a damaged, leaking, or swollen lithium-ion device in a vehicle.

Once a month, check the charge level, clamps, cables, hose, adapters, display, and flashlight.

NHTSA’s road-trip safety checklist also recommends carrying items such as a phone charger, pressure gauge, gloves, flashlight, and basic tools.

The KingTool Auto Tools collection can help you compare an all-in-one emergency unit with a dedicated inflator.

For a broader roadside kit, the 226 PCS Home and Auto Tool Set combines basic repair tools in one case.

You can also compare the wider Tool Kits collection and Hand Tools collection, but carry only equipment you understand and can secure safely in the vehicle.

At the end of its service life, do not place a lithium-ion jump starter in household trash or a curbside recycling bin. Use an approved battery or electronics collection program and follow the device manufacturer’s handling instructions.

Frequently Asked Questions

Should I use the PSI printed on the tire sidewall?

Use the vehicle manufacturer’s recommended cold pressure from the tire-information placard or owner’s manual.

The sidewall number is not normally the vehicle’s everyday target pressure.

Can I use the jump starter as a battery charger?

A jump starter provides a short burst of power to help start a supported vehicle. It should not be assumed to be a battery charger, maintainer, or battery-repair device.

Have a repeatedly weak battery and the vehicle’s charging system tested.

Can I jump-start an electric or hybrid vehicle?

Do not connect a portable jump starter to a high-voltage traction battery.

Some electric and hybrid vehicles have a separate 12V system and designated starting procedures, but these vary by model. Follow the vehicle manufacturer’s instructions or request professional assistance.

What if the tire loses pressure again?

Inflating the tire does not repair a puncture, leaking valve, damaged wheel, or sidewall cut.

If the pressure falls again, limit driving as appropriate and have the tire inspected by a qualified service provider.

Two Functions, One Careful Routine

A combination jump starter can prepare you for two common roadside problems, but its value depends on preparation.

Keep it charged, learn the controls before an emergency, use the vehicle’s approved jump points, and set tire pressure from the doorjamb placard.

When damage, warning indicators, unsafe traffic conditions, or unfamiliar vehicle systems make the next step uncertain, stop and call for professional help.
