What Size Hole Punch Do You Need for a Leather Belt?

For most belt repairs, do not choose a punch size from a generic chart alone. Match the diameter of an existing hole and confirm that the buckle prong passes through without forcing or excessive looseness.

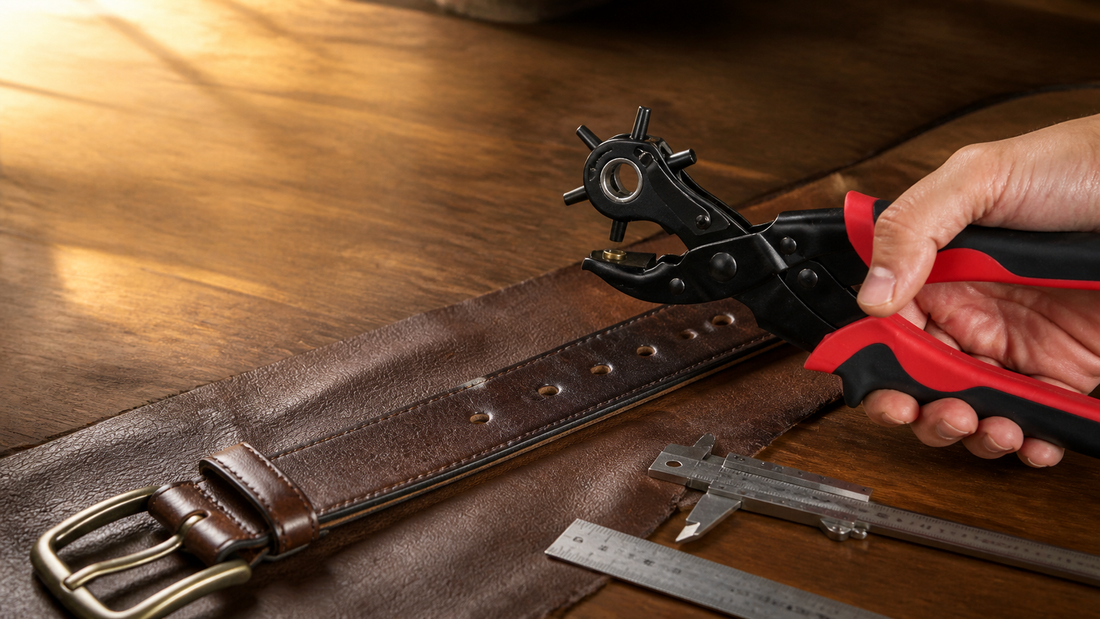

A rotary punch with several settings makes this easier because you can compare nearby sizes and test them on scrap material before cutting the belt.

If the existing hole falls between two settings, begin with the smaller one on a scrap of similar leather. A hole can sometimes be enlarged carefully; an oversized or misplaced hole cannot be put back.

Numbers such as 3mm, 4mm, and 5mm are useful reference points, but they are not universal rules.

Two belts of the same width can use different buckle pins. One may be a single layer of firm leather, while another may be stitched, lined, coated, or made from bonded material.

Why the Correct Hole Size Matters

A hole that is too small forces the buckle prong through the leather.

Repeated pressure can stretch the opening, mark the finished surface, and make fastening the belt frustrating.

A hole that is too large allows the prong to move. This can make the new hole look different from the factory row and concentrate wear around one edge.

Shape matters as well as diameter. A clean, round opening distributes wear more evenly than a slit cut with a knife.

That is why a rotary leather punch is usually a better choice for an ordinary belt adjustment than scissors, a utility knife, screwdriver, or heated nail.

The KingTool Leather Hole Punch Set provides six rotating sizes: 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, and 5mm.

That range covers many household leather and strap adjustments, but the condition and thickness of the workpiece still determine whether a DIY punch is appropriate.

Tool format matters too.

A rotary punch is portable and convenient for occasional adjustments. The KingTool Desktop Leather Hole Punch offers a bench-style setup for users who prefer to stabilize the work on a table.

The KingTool 2-in-1 Leather Hole Punch and Grommet Kit is intended for projects that also require compatible eyelets.

These are different jobs, so do not choose a grommet tool when you only need to match an ordinary buckle hole.

How to Measure an Existing Belt Hole

The most reliable reference is the belt itself.

Lay it flat in bright, even light and inspect the holes that receive the buckle prong. Choose a hole that is still round and has not stretched from years of repeated use.

If you have calipers, measure the inside diameter at the narrowest intact point without including frayed fibers.

If you only have a ruler, place the millimeter scale directly over the opening and compare the widest clean portion. Sample holes made in scrap leather can make this comparison easier.

Also measure or closely inspect the buckle prong near the point where it rests in the fastened hole.

The opening needs to admit the prong without tearing the leather, but it should not be dramatically wider than the working part of the prong.

If the existing holes are oval, do not copy their longest dimension. They may have stretched through use.

Compare several holes and favor the least-used original as your reference.

What Do the Six Rotary-Punch Sizes Suit?

Treat the six settings as test points, not guarantees.

The 2.5mm to 3mm range may suit fine straps, watch bands, craft holes, or small hardware.

The 3.5mm to 4mm range is a common candidate for many everyday belts and straps.

The 4.5mm to 5mm range may match larger buckle prongs, heavier straps, or factory holes that clearly measure near those sizes.

The existing belt design still makes the final decision.

Material thickness does not automatically tell you the correct hole diameter. A thick belt can use a relatively slim buckle prong, while a thinner fashion belt may have larger decorative hardware.

Match the opening to the existing design instead of selecting the largest punch that can pass through the material.

Where Should a New Belt Hole Go?

If the belt is only slightly too loose or tight and the new position continues the existing row, adding one hole may be reasonable.

If the belt is several positions off, the tail no longer fits the keeper, or the buckle falls in an awkward part of the design, resizing or replacing the belt may produce a better result.

To locate a new hole, measure the center-to-center distance between two original holes.

Do not assume that every belt manufacturer uses the same spacing. Measure the actual belt in front of you.

Transfer that exact distance beyond the final hole, then use a straightedge or a thread stretched through the center of the existing row to find the centerline.

Mark a tiny dot and inspect it from both sides.

Avoid stitching, embossed decoration, perforated patterns, reinforcement layers, and positions too close to an edge.

Measure again before bringing the punch near the belt.

How to Test the Punch Size Before Touching the Belt

Use scrap leather of similar thickness. Do not make a “hidden” test hole in the finished belt.

Rotate the punch wheel until the chosen tube is completely aligned with the anvil or punch plate. Confirm that it locks into position.

Make one test hole, remove the cut plug, and pass the buckle prong through the opening.

The prong should enter without being forced, but it should not rattle in a visibly oversized hole.

If the test hole is too tight, move up one setting and try again. If the larger setting looks loose, reconsider the repair instead of making an irreversible cut.

Compare the test hole with several original holes under the same lighting. This short test is especially useful when choosing between 3.5mm and 4mm or between 4mm and 4.5mm.

How to Punch a Clean Hole in a Leather Belt

1. Inspect the Tool and Belt

The punch tube should be clean, sharp, and aligned over an undamaged punch plate.

The belt should be dry, stable, and free from cracking around the planned location. Never attempt to punch the belt while wearing it.

Cutting tools can release small fragments. The Canadian Centre for Occupational Health and Safety recommends using tools in good condition and wearing eye protection where flying particles are possible.

Its hand-tool safety guidance also warns against adding handle extensions simply to gain more leverage.

2. Select and Lock the Punch Tube

Turn the rotary head to the size confirmed by your test.

Make sure the punch tube is centered directly over the plate. A half-positioned tube may land beside the plate, dent the belt, or damage the cutting edge.

Check the marking on the wheel one more time before positioning the belt.

3. Align the Mark

Open the handles and slide the belt between the punch tube and plate.

Center the mark beneath the tube. View the belt from directly above rather than from an angle, because an angled view can make an off-center mark appear aligned.

Keep the belt flat so the punch meets the surface at a right angle. Support the rest of the belt so its weight does not pull the marked area sideways.

4. Squeeze With Controlled Pressure

Close the handles smoothly until the tube cuts through and meets the punch plate.

Do not twist the punch sideways, hammer the handles, add a pipe for leverage, or bounce repeatedly on a partial cut.

If the tool does not cut with reasonable hand pressure, stop.

The tube may be dull or misaligned, the leather may be too thick, or the belt may contain layers the tool is not designed to cut. Additional force is not always the correct solution.

5. Inspect the Opening

Release the handles and remove the belt carefully.

A clean plug should separate, leaving a round hole. Check both faces for an attached flap, crushed finish, separated lining, or damaged stitching.

Pass the buckle prong through the new opening gently. It should move without tearing the edge.

Do not enlarge a nearly correct hole with a utility knife. A blade can turn a controlled circle into a slit that grows under load.

The KingTool guide Utility Knife vs. Box Cutter: Types of Cutting Tools explains why cutting tools should be selected according to the task rather than treated as interchangeable.

Belts, Collars, and Watch Straps Are Not Identical

The same rotary punch can create several hole sizes, but the decision process changes with the item.

For a belt, appearance and buckle fit are usually the main concerns.

A dog collar is load-bearing, so do not modify one that is cracked, badly worn, very narrow, or structurally questionable. If you cannot leave sufficient material around the new hole, replace the collar.

Watch straps are smaller and less forgiving. A hole that is only slightly off-center can be easy to see, and padded or stitched straps may contain several layers.

Fine watch straps may require a more specialized punch or professional repair.

Tack, safety equipment, climbing gear, and protective restraints should not be treated as fashion-belt projects. The consequences of failure are higher, so use a manufacturer-approved repair service.

For ordinary fabric repairs that require stitching rather than a load-bearing punched hole, use sewing tools such as the KingTool 78-Piece Sewing Kit instead of forcing a leather punch through woven material.

When Not to Punch Leather at Home

Stop and consult a leatherworker or the product manufacturer if the item is valuable, antique, heavily cracked, laminated, unusually thick, reinforced, or made from an unfamiliar material.

Ratchet belts and track belts do not use ordinary buckle holes, so punching them does not create a new adjustment position.

Do not apply random oils or household products to “seal” the hole. Leather finishes react differently, and a product that works on one belt may permanently darken or stain another.

For historic objects, the National Park Service warns that leather dressings can create irreversible problems in its discussion of leather care and conservation.

A modern wearable belt is not a museum artifact, but the practical lesson is useful: test any care product and avoid unnecessary treatment.

You can compare other practical repair tools in the KingTool Hand Tools collection, but avoid buying a large kit when one purpose-built tool solves the job.

If this is your first hand-tool project, review the Beginner Tool Guide and 10 Essential Hand Tools Every Homeowner Should Have for basic inspection, measuring, storage, and tool-selection habits.

Frequently Asked Questions

Is 4mm the standard size for a leather belt hole?

Four millimeters is a common candidate, not a universal standard.

Measure an intact existing hole and inspect the buckle prong. Some belts need a smaller or larger opening.

Should I choose the smaller or larger setting if I am between sizes?

Test the smaller setting on scrap first. The buckle prong should pass through without excessive force.

If it cannot, test the next size. Never make the final decision directly on the finished belt.

Can I use a leather punch on a dog collar?

A rotary punch may work on a sound leather collar when the new hole matches the existing row and leaves sufficient material around every edge.

Do not modify a cracked, frayed, narrow, or structurally questionable collar.

Why is the punch leaving a dent instead of a hole?

The punch tube may be dull, clogged, incorrectly aligned, or unsuitable for the material’s thickness. The punch plate may also be worn.

Stop and inspect the setup rather than applying uncontrolled leverage.

Measure Twice, Test Once, Punch Once

The correct hole-punch size matches the belt’s intact holes, accommodates its buckle prong, and leaves a clean opening in sound material.

Measure the original hole, test the nearest size on scrap, align the mark carefully, and stop if the belt or tool behaves unexpectedly.

That small amount of preparation is what makes a new belt hole look intentional rather than improvised.
