Cut-Off Wheel vs Grinding Wheel vs Flap Disc: Which to Use?

A cut-off wheel, a grinding wheel, and a flap disc may fit the same angle grinder, but they do different jobs. Use a cut-off wheel to separate metal, a grinding wheel to remove heavier material, and a flap disc to blend, deburr, or leave a smoother finish. The safest choice is the wheel made for the task, the material, and your grinder's size and speed rating.

That distinction matters because a thin cutting disc is not a substitute for a grinding wheel. Side pressure can damage it. Before installing any accessory, disconnect the grinder, read both labels, inspect the wheel, and confirm diameter, arbor, maximum RPM, guard, and flange compatibility.

Quick comparison: which wheel should you use?

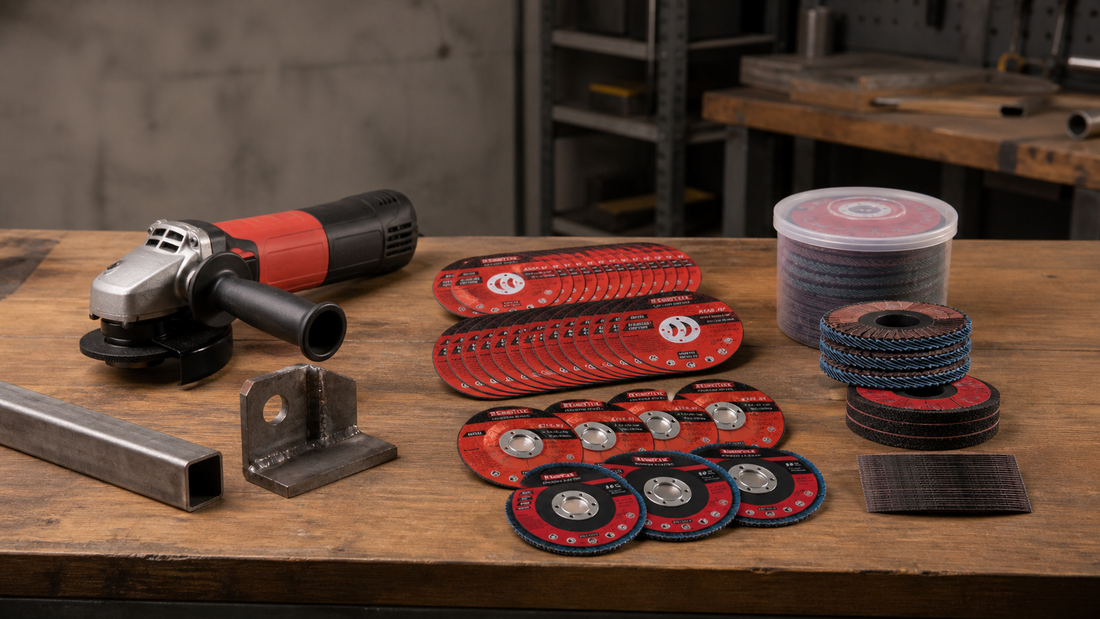

If one project involves all three stages, change accessories as the job changes. A common sequence is cut, grind the high spots, then blend with a flap disc. The KingTool 31 PCS Grinding & Cutting Wheels set is arranged around that workflow: 25 cut-off wheels, three grinding wheels, and three P80 flap discs in a storage case. It is listed for 4-1/2-inch angle grinders with a 7/8-inch arbor, but you still need to check your grinder and every wheel label before use.

What a cut-off wheel does

A cut-off wheel is thin because its job is to make a narrow path through material. The 3/64-inch cut-off wheels in the KingTool set are described for metal and stainless steel. Typical home-shop jobs include shortening a threaded rod, trimming a damaged bolt, cutting small metal tubing, or separating sheet stock.

Keep the disc aligned with the cut. Do not twist the grinder to correct a drifting line while the wheel is buried in the material. Back out, let the wheel stop, and reset your approach. Clamp the work so both sides remain stable and the closing cut cannot pinch the disc.

Most important: do not grind with the side of a cut-off wheel. A thin disc is not designed for that lateral load. Change accessories when the task shifts to shaving a weld or rounding an edge. The guide to utility knives versus box cutters applies the same principle to hand cutting: match the cutter to the material.

What a grinding wheel does

A grinding wheel is thicker and intended for stock removal. Reach for it when a weld bead sits too high, a metal edge has a heavy burr, or a bracket needs more substantial reshaping than a finishing disc can provide. It removes material quickly, so pause often and check your progress.

A grinding wheel usually leaves a coarser surface than a flap disc. That is not a flaw; it is the tradeoff for faster removal. Hold the grinder with both hands, keep a balanced stance, and use the working angle specified by the grinder and wheel manufacturers. Avoid leaning your body behind the tool or forcing the wheel when it stops cutting efficiently.

New users can review the beginner tool guide, then practice their stance, switch location, and shutdown routine before touching the workpiece.

What a flap disc does

A flap disc has overlapping abrasive flaps attached to a backing plate. Instead of attacking the surface as aggressively as a hard grinding wheel, it removes and blends material in a more gradual way. That makes it useful for smoothing a weld after the high spots are gone, deburring a cut edge, feathering scratches, or preparing a surface for later finishing.

The included flap discs in the KingTool set use zirconia abrasive in P80 grit. P80 is a practical medium grit for general blending and cleanup, but it will not produce a polished surface. The exact finish depends on the material, pressure, grinder speed, disc condition, and how long you stay in one spot. Test on scrap when appearance matters.

Use light, overlapping passes and keep moving. Replace a disc with torn flaps, damaged backing, or abnormal vibration. For softer sheet materials, check what electric scissors can cut before reaching for a grinder.

Choose by the result you need

Start with the final result, then work backward.

• To separate two pieces of metal, choose a cut-off wheel.

• To remove a noticeable amount of metal, choose a grinding wheel.

• To soften a sharp edge or blend a surface, choose a flap disc.

• To cut and then smooth, use a cut-off wheel first and a flap disc afterward.

• To remove a tall weld and then improve the finish, use a grinding wheel followed by a flap disc.

Do not choose by whichever wheel is already mounted. The minute saved by skipping a changeover is not worth an uncontrolled cut, a poor finish, or a damaged disc. If you are building a broader household setup, the ultimate home tool kit checklist helps separate everyday essentials from job-specific accessories. The power tools collection also gives you a clear next stop when the accessory is only one part of the setup you need.

How to check grinder and wheel compatibility

A 4-1/2-inch label alone does not prove that a wheel fits your grinder. Check all of the following before mounting it:

1. Diameter: The wheel diameter must be approved for the grinder and its guard.

2. Arbor: The wheel opening must match the spindle or approved mounting hardware. Never enlarge the hole.

3. Maximum RPM: The accessory rating must meet or exceed the grinder's no-load speed.

4. Guard: Use the correct guard type and position for cutting or grinding.

5. Flanges: Install the approved flanges in the correct orientation. They should be clean and undamaged.

6. Material rating: Confirm that the wheel is intended for the work material.

7. Condition: Reject wheels with cracks, chips, warping, moisture damage, missing labels, or questionable storage history.

The OSHA abrasive-wheel machinery standard explains guarding and wheel-related requirements in workplace settings. Home users should also follow the grinder and accessory manufacturers' instructions; those documents address the exact equipment in front of you.

A safer setup before the grinder starts

Clear the bench of sawdust, fuel, solvents, paper, and other combustibles. Sparks travel farther than they appear to. Secure the workpiece with a suitable clamp, plan where the offcut will move, and keep the cord or battery clear of the wheel path.

Wear eye protection, and add a face shield over safety glasses when the task calls for it. Hearing protection, protective footwear, close-fitting clothing, and suitable respiratory protection may also be needed. Tie back long hair and remove loose jewelry. OSHA's hand and power tools guidance stresses guarding, appropriate personal protective equipment, and removing damaged tools from service.

After mounting a wheel, position the guard between you and the accessory. Stand out of the wheel's plane during startup and watch for wobble, unusual vibration, or noise. Stop immediately if anything feels wrong. The Canadian Centre for Occupational Health and Safety offers a detailed grinder attachment safety guide covering inspection, mounting, guards, startup, pressure, sparks, and storage.

Common mistakes that ruin the cut or the wheel

Do not force the tool. Excess pressure can increase heat, deepen scratches, pinch a cutting disc, or reduce control. Other mistakes include starting with the wheel against the work, using a damaged guard, setting down a spinning grinder, and changing wheels while power is connected.

Mark the cut, identify the waste side, and support both pieces. See 10 essential hand tools for homeowners for measuring and clamping basics, or nine common home repairs when deciding whether a grinder fits the repair.

Frequently asked questions

Can I use a flap disc to remove a weld?

Yes, for light weld blending or final cleanup. A hard grinding wheel is usually more efficient when substantial weld material must come off. Remove the high spots first, then use a flap disc when you want more control over the finish.

Can I use a grinding wheel to cut metal?

Use an accessory specifically marked for cutting instead. Wheel construction and permitted contact differ. Follow the labeling from the accessory and grinder manufacturers.

What does P80 mean on a flap disc?

P80 identifies the abrasive grit size. It is a medium grit commonly used for blending, deburring, and surface preparation. It removes less aggressively than a coarser grit and leaves a less refined finish than a finer grit.

When should I replace an abrasive wheel?

Replace it if you see cracks, chips, warping, damaged flaps, a compromised backing, an unreadable rating, or abnormal vibration. Replace worn wheels when they no longer cut predictably. Never keep using one just to finish the last inch.

Build a task-based wheel setup

The simple rule is worth remembering: cut-off wheels cut, grinding wheels remove heavier stock, and flap discs blend. Confirm compatibility every time, keep each wheel within its designed job, and stop when the tool behaves differently than expected.

For a compact supply that covers those three stages, review the specifications and current availability of the 31-piece grinding and cutting wheel set. If you are still organizing the rest of your workspace, browse the Tool Tips & Guides hub before your next project.
